B-Stock – Dual 12″ Enclosure
$399.99
Availability: 2 in stock
— B-Stock —
-3 Units Available-

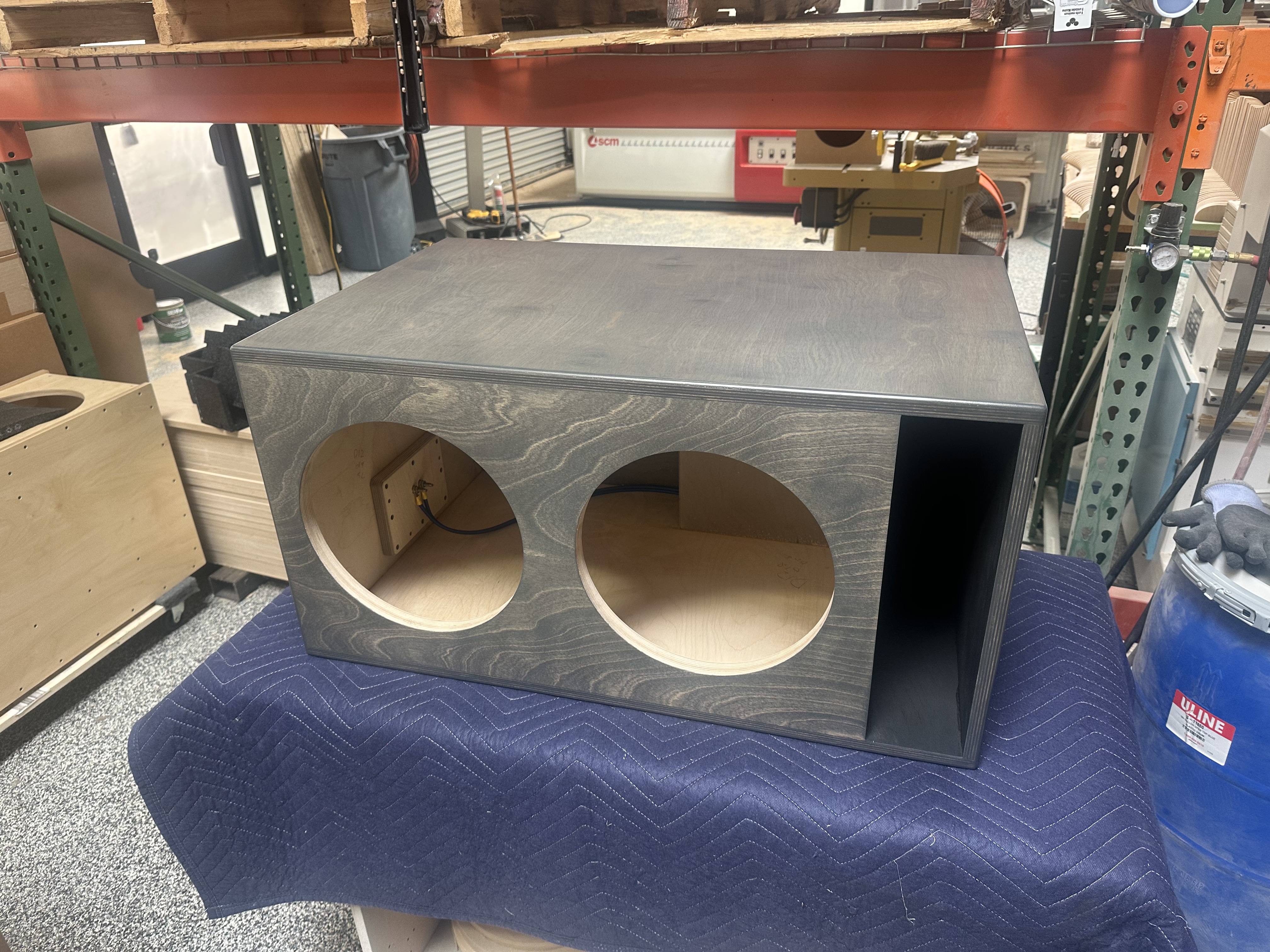

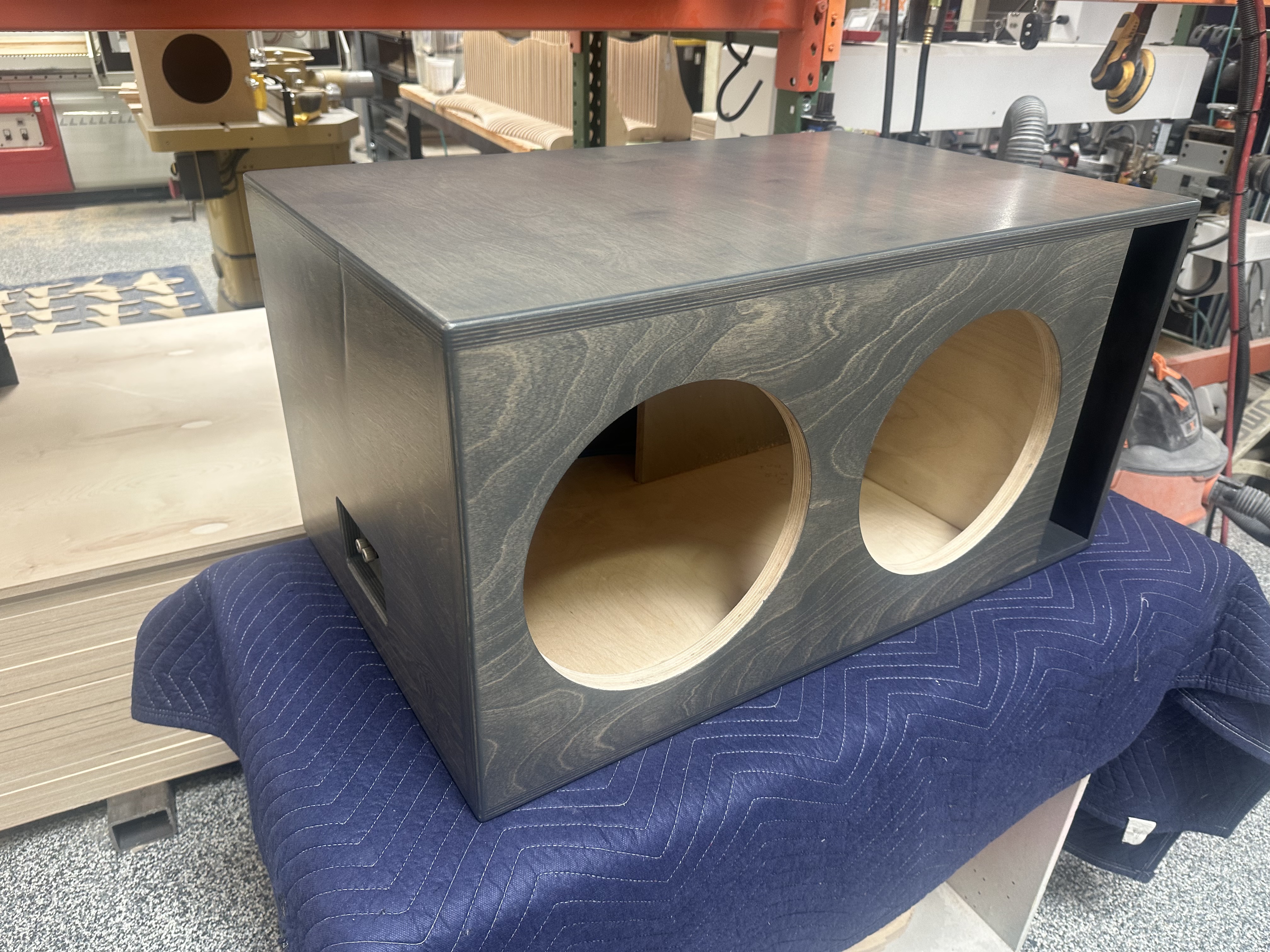

Dual 12″ Enclosure:
17″ tall
21″ deep
33″ wide
4.0 cubes net
32 hz tuning
62 sq inches of port area
11.125″ cut out
Specifications
| Coil | Dual 2 | Dual 4
(VC wired in Series) |
|---|---|
| Fs | 27.39 Hz | 29.74 Hz |
| Re | 3.46 ohm | 7.63 ohm |
| Qms | 4.61 | 4.78 |
| Qes | .48 | .64 |
| Qts | .43 | .57 |
| Mms | 145.67 g | 132.85 g |
| Cms | .23 mm/N |
| Sd | 506.70 cm^2 |
| Vas | 84.50 L | 84.16 L |
| SPL | D2: 87.29 dB 1W/1m D4: 86.64 dB 1W/1m |
| Bl | D2: 13.35 Tm D4: 16.81 Tm |
| Xmax | 15 mm (One Way) |
| RMS | 250W – RMS |
Box Info
| Overall Diameter | 12.5″ |
|---|---|
| Cutout Diameter | 11.125″ |
| Mounting Depth | 5.625″ (6.5″ With Pole Vent) |
| Driver Displacement | .08 ft^3 |
| Sealed Enclosure | .8-1.2 ft^3 Net |
| Ported Enclosure | 1.75-2.1 ft^3 Net |
